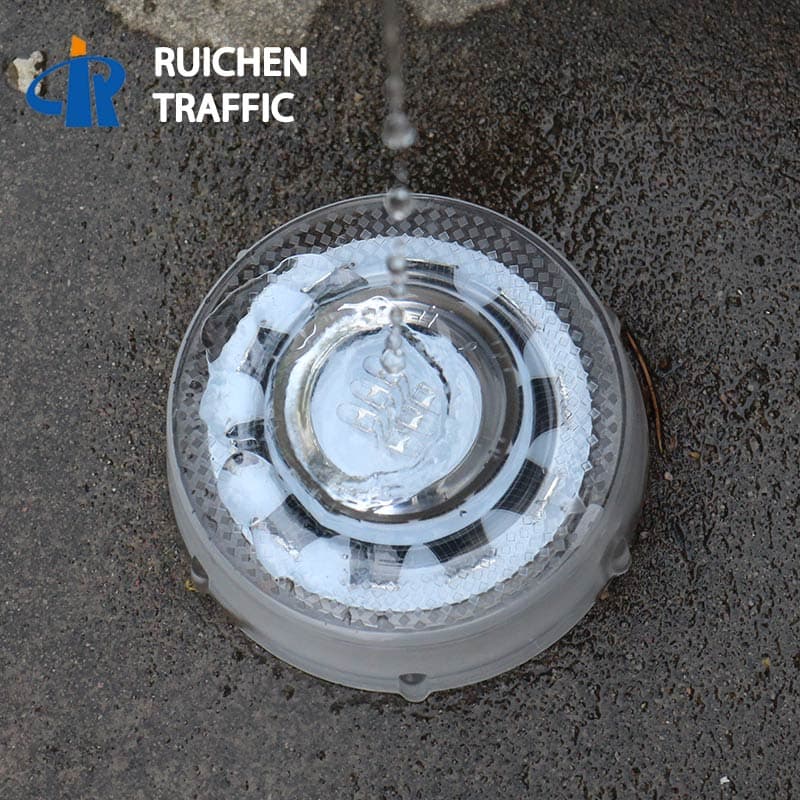

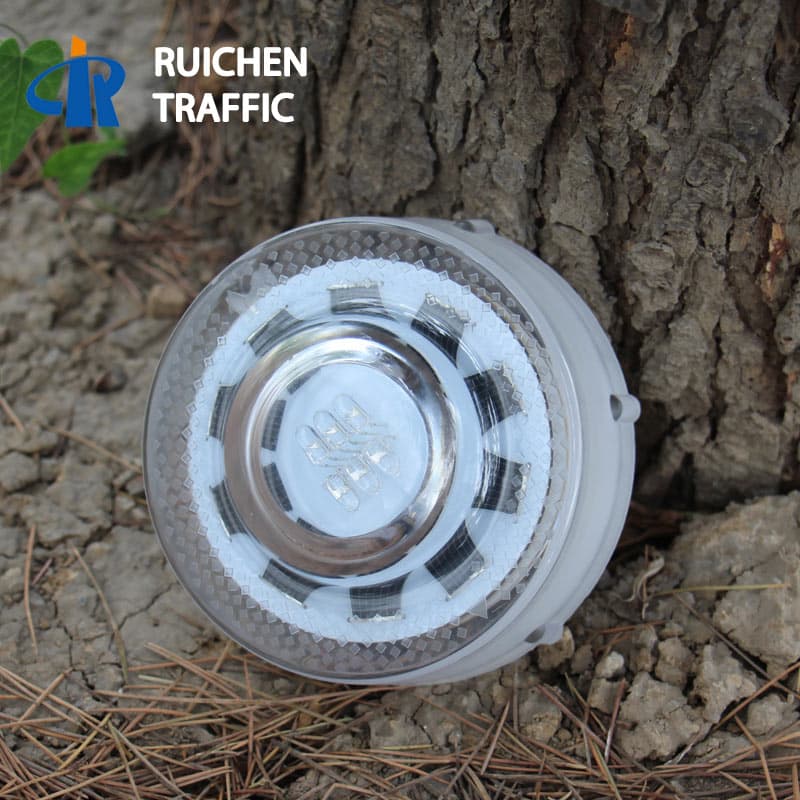

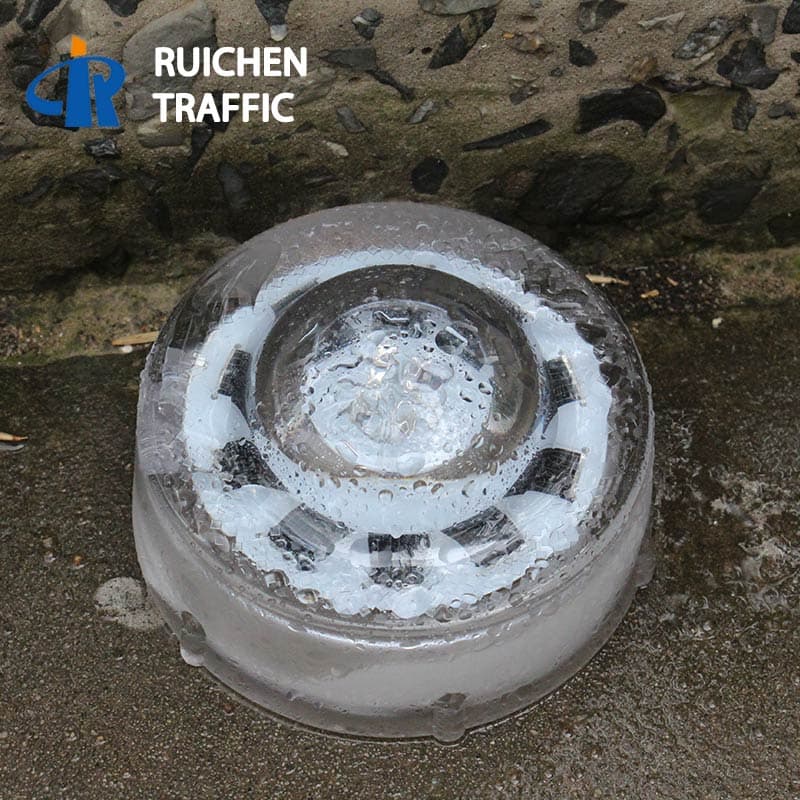

360 Degree PC Solar Pavement Marker Light B2

Load Bearing: >20T(static)
Warranty: 12 Months
Body material: Anti-UV PC
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Visual distance: > 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Type: Embedded type

Product Introduction

360-degree PC Solar Pavement Marker Light Features:

•High shock resistance, energy-saving, environment friendly.

•Automatically starts to work when night falls or with the onset of inclement weather.

•These PC Solar Pavement Marker lights are naturally charged by the sun.

•The LED lights of Solar Pavement Marker Light come on automatically as soon as it starts getting dark every night.

• Cost-effective, PC Solar Pavement Marker Lights are easy to install and require absolutely no wires or maintenance.

•Dramatically enhances the look of your garden/yard/driveway.

•Specifically designed with road safety in mind and can help to prevent serious accidents and emit rather than reflect light.

•PC Solar Pavement Marker Light accept OEM/ODM

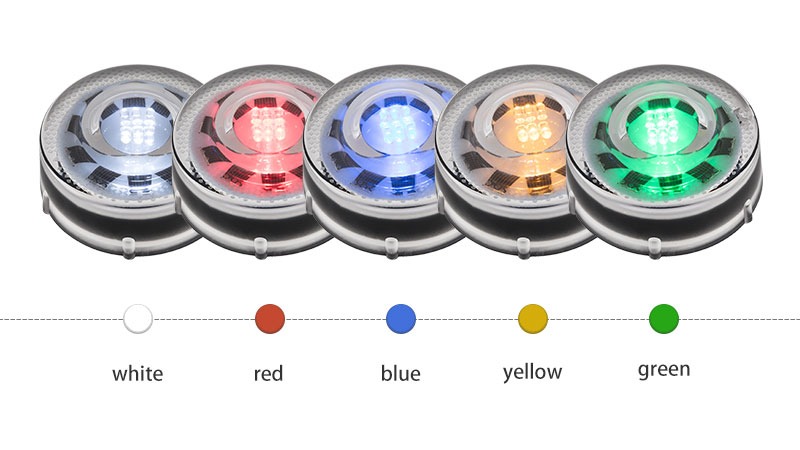

360 Degree Plastic Solar Road Stud color
Five colors for choice: White, Amber, Red, Blue, Green



Embedded Type PC Solar Pavement Marker Light Parameters:



    Material:     Anti-UV PC
    Power supply:     Solar panel(monocrystalline 2.5V/0.2W)
    Battery:     NI-MH 1.2V/800MAH or Lithium battery
    Working model:     Blinking or Constant
Charging in daytime and working automatically at night
    LED:     Ultra-bright LED, diameter 5mm(6pcs)
    LED colors:     Yellow, White, Red, Green, Blue
    Life span:     3 years
    Resistance:     >20T(static)
    Size:     φ112*56mm  (φ4.41*2.20″)
    Visual distance:     >800M
    Water proof:     IP68
    Carton Size:     1pcs/box;30pcs/ctn; Weight:13.5kgs; Carton size:60*34.5*21.5cm
(1pcs/box;30pcs/ctn; Weight:29.76bs; Carton size:23.62″*13.58″*8.46″)



360 Degree PC Solar Pavement Marker Light B2
360 Degree PC Solar Pavement Marker Light B2

Application of PC Solar Pavement Marker Light B2:

♥Schools and hospitals

♥Highways

♥High traffic areas

♥Walking paths

♥Transit stations

♥Parks and campuses

♥Urban Road



Installation Method Of PC Solar Pavement Marker Light:

  • Carefully mark the distance between the placement of Solar Pavement Marker Light. To prevent an adverse effect on the ground, use a proper tool such as Core Drill. Drill Φ108mm and depth will be 50mm.
  • Remove all debris from the installation hole.
  • Pour epoxy into the holes per the manufacturer’s instruction.
  • Verify that the installation hole is straight. Verify that the installation hole is large enough to allow the epoxy to surround the plastic Solar Pavement Marker Light shaft.
  • Set the lighting surface of the Solar Pavement Marker Light to the desired viewing angle. Verify the epoxy is evenly adhering to the installation hole and Solar Pavement Marker Light shaft.
  • After curing the LED Solar Pavement Marker Light for 6-8 hours, remove the installation of the isolation facility.
